Welcome to Wenzhou Yixing Machinery Co.,Ltd.!

Single-side coating machine

YIHAI MACHINERY Co., LTD is located in Pingyang,wenzhou ,zhejiang province . It Is a innovative enterprises integrating research and development, production. Specialized in the production of air bubble film machine, laminating machine, stretch film machine,film blowing machine, bag making machine, printing machine and plastic packing machinery. Products are approved by CE certification.And the products are exported to overseas.


Detail

Inquery

Optional equipment:
1.Chiller
2.Automatic Vacuum Feeder
3.Auto Changing Sieve
4.Scrap Reverse
5.PLC control system
6.Corona treatment

Model

YHFM-800

YHFM-1100

YHFM-1300

YHFM-1600

YHFM-1800

YHFM-2000


T-Die Length

1000mm

1300mm

1500mm

1800mm

2000mm

2200mm


Max. width film

800mm

1100mm

1300mm

1600mm

1800mm

2000mm


Speed

110m/min

110m/min

110m/min

110m/min

110m/min

110m/min


Film Thickness

0.06-0.15mm

0.06-0.15mm

0.06-0.15mm

0.06-0.15mm

0.06-0.15mm

0.06-0.15mm


Screw Dia.

φ85mm

φ90mm

φ95mm

φ100mm

φ105mm

φ110mm


Max. dia. rewinding

1200mm

1200mm

1200mm

1200mm

1200mm

1200mm


Material diameter

1200mm

1200mm

1200mm

1200mm

1200mm

1200mm


Product Application

Yihai designs and manufactures extrusion coating  machine lines on the strength of a thorough expertise in the co-extrusion of special polymers - customized and modular layout to meet the demand for special products; - chill-roll unit with precise temperature control - rapid cooling system - special winders and unwinders suitable for any final application.



1.    PLC man-machine interface with central control, integrally designed with machine ,electricity and gas system..

2.     Its high effective corona unit and automatic hydraulic exchanging filter screen are the first invention of its kind at home ,which can increase the strength to strip the products.





Specification:

Model

YHFM-1800

Length of mold

2000mm

Width of film

1800mm

Speed

150m/min

Thickness laminating

0.06-0.15mm

Screw Diameter

φ105mm

Max.Diameter rewinding

1200mm

Material Diameter

1200mm

Total Power

130KW

L*W*H

13*11*3.2m



Machine features:

1. Composite parts of pneumatic control saves time and effort. Rewinder double position pneumatic roll alternation, roll alternation without stopping.
2. We use intelligent temperature controller, which is high precision energy conservation and environmental protection.
3. Rewind electric, pneumatic pick up position changes reels nonstop roll, reduce labor intensity.

 Application range:

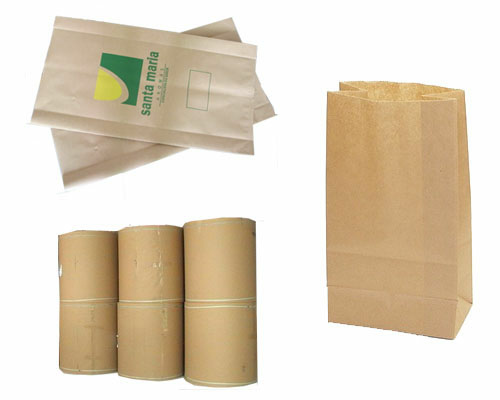

Paper-plastic complex, plastic-plastic complex, aluminum-plastic complex
