2-5 layer composite bubble film machine - twin screw extrusion

YIHAI MACHINERY Co., LTD is located in Pingyang,wenzhou ,zhejiang province . It Is a innovative enterprises integrating research and development, production. Specialized in the production of air bubble film machine, laminating machine, stretch film machine,film blowing machine, bag making machine, printing machine and plastic packing machinery. Products are approved by CE certification.And the products are exported to overseas.

Detail

Inquery

The machine is suitable for LDPE and LLDPE particles

The machine can produce 2-5 layers of bubble film (film + flat film + bubble + flat film + film + film =5 layers), the extruder is composed of the main extruder and the auxiliary extruder, a total of 2 screws, can produce bubble film composite kraft paper, pearl cotton, PET aluminized film, co-extrusion film and other products. 16. The diameter of the bubble in this table is 6-30mm with the change of the flower roller. The products are waterproof, anti-pressure, anti-static, heat insulation and other functions, widely used in furniture, hardware, building materials, electronics, express packaging industry.

Optional equipment:

1.Chiller

2.Automatic Vacuum Feeder

3.Auto Changing Sieve

4.Blender

5.Scrap Reverse

6.Grinder

7.Auto Rewinder

8.In-line perforated unit


MODEL	MAX.WIDTH	DIA. SCREW	SCREW L:D	CAPACITY(kg/h)	SPEED	TOTAL POWER	CONSUMPTION POWER
YHPEG-1000A	1000mm	65/50	32：1	50-70	700-1500	88KW	25-35KW
YHPGE-F1200A	1200mm	65/50	32：1	50-80	700-1500	95KW	30-40KW
YHPEG-F1500A	1500mm	75/55	32：1	70-100	700-1200	108KW	35-45KW
YHPEG-F1600A	1600mm	75/55	32：1	70-110	700-1200	112KW	35-45KW
YHPEG-F1800A	1800mm	80/65	32：1	90-130	600-1200	128KW	40-50KW
YHPEG-F2000A	2000mm	85/65	32：1	100-150	600-1100	150KW	45-60KW
YHPEG-F2200A	2200mm	90/70	32：1	110-180	600-1000	170KW	50-70KW

Main Features

1) This machine is specially designed for the packing products

2) The machine with high inteligence,high speed and efficiency production,energy saving,

3) The machine can produce 2 layers air bubble film,It has good cushioning effect,shock resistance and heat-sealing performance.

4) we are the first factory to use the best brand T die,and can adjust the different width automaticlly

Detailed Images

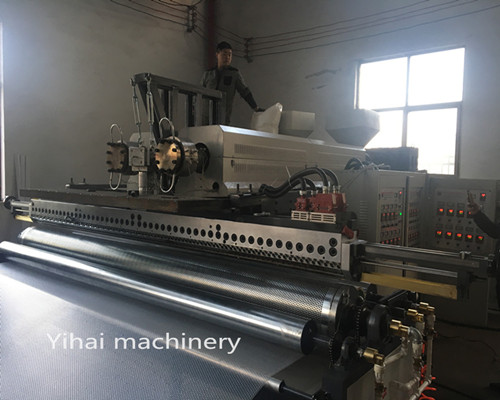

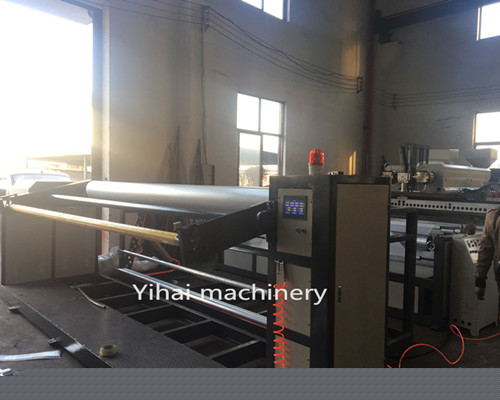

Machine

Name: double screw 2 layers 3600mm air bubble film machine

Brand: YIHAI

Original: Wenzhou city,zhejiang province,China

Details:This is two layers air bubble film machine,can make the width from 1.2m-3.6m,it widely use in packing furniture,post parcel,houseware,precise instrument and so on

Pre-sale Service

· Free consulting about machine type and size.

· 24 hours online service to respond you anytime.

· Videos in details to show you everything you want to know.

· Anything else based on your production needs.

After-sale Service

· Well experienced engineer avaliable to provide oversea service at your place.

· 24 hours online service to respond you anytime.

· Installing, testing and training service.

· Lifelong technical support.

· 1 year warranty.
