2 layer bubble film machine - twin screw extrusion

YIHAI MACHINERY Co., LTD is located in Pingyang,wenzhou ,zhejiang province . It Is a innovative enterprises integrating research and development, production. Specialized in the production of air bubble film machine, laminating machine, stretch film machine,film blowing machine, bag making machine, printing machine and plastic packing machinery. Products are approved by CE certification.And the products are exported to overseas.


Detail

Inquery

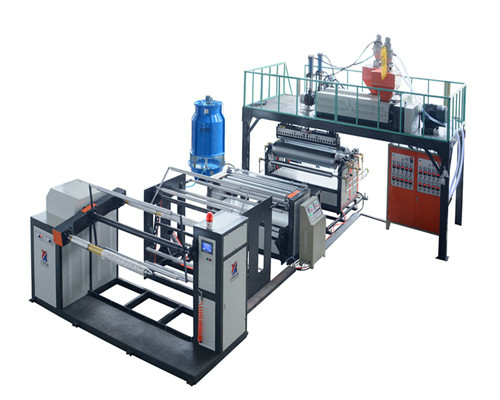

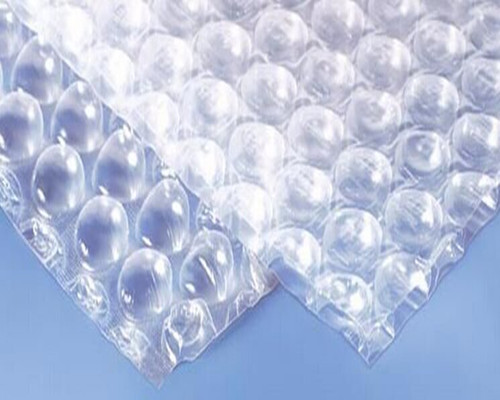

The machine can produce 2 layers of bubble film, extruder for twin screw design. The advantage of the twin screw design is that the bottom layer and bubble layer can be controlled separately, so as to achieve simple operation, fast speed, beautiful products and other characteristics.
The main raw materials are LDPE and LLDPE particles. Main components: hopper - extruder - die head - bubble forming die - traction roll - flattening roll - winder - control box
Optional equipment:
1.Chiller
2.Automatic Vacuum Feeder
3.Auto Changing Sieve
4.Blender
5.Scrap Reverse
6.Grinder
7.Auto Rewinder
8.In-line perforated unit

MODEL

MAX.WIDTH

DIA. SCREW

SCREW L:D

CAPACITY (kg/h)

SPEED

TOTAL POWER

YHPE-1500

1500mm

65/55

321

70-100

700-1800

95KW

YHPE-1600

1600mm

65/55

321

70-110

700-1800

98KW

YHPE-1800

1800mm

70/55

321

90-130

700-1800

110KW

YHPE-2000

2000mm

75/60

321

100-150

700-1500

130KW

YHPE-2200

2200mm

80/65

321

110-180

700-1500

150KW

YHPE-2500

2500mm

85/70

321

130-200

600-1300

160KW

YHPE-3000

3000mm

100/85

321

150-250

600-1200

180KW

YHPE-3500

3500mm

110/95

321

160-280

600-1200

200KW












Technical parameters:



model

Screw(mm)

Width(mm)

Production(kg/h)

power(kw)

Screw Length : diameter

YHPEG-3000

Φ100x3

3000

280

230

32:1

YHPEG-2500

Φ90x3

2500

200

200

32:1

YHPEG-2000

Φ75x3

2000

170

140

32:1

YHPEG-1800

φ85,70

1800

120

120

32:1

YHPEG-1600

Φ80,60

1600

100

110

32:1

YHPEG-1500

Φ75,60

1500

90

110

32:1

YHPEG-1200

Φ70,55

1200

70

82

32:1

YHPEG-1000

Φ65,55

1000

70

82

32:1













Our Machines World Wide:

America,England,Spain,Bulgaria,Tunisia, India , Vietnam, Philippines, Singapore, Isreal, Turkey, Iran, Russia, Paraguay, Brazil, Canada, Tanzania etc.

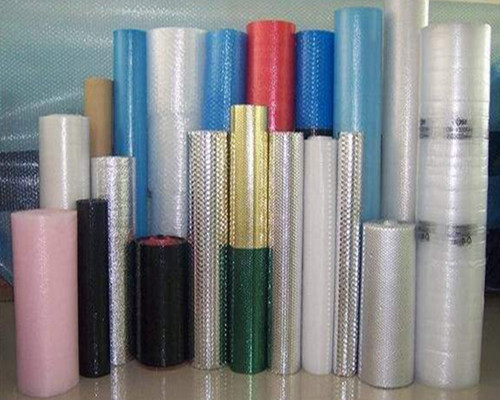

Our Bubble film production Range: from Width 1000mm To 3600mm (3.6meter width finished film)





Company Information

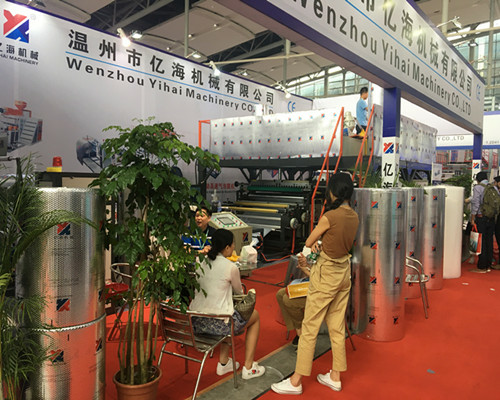

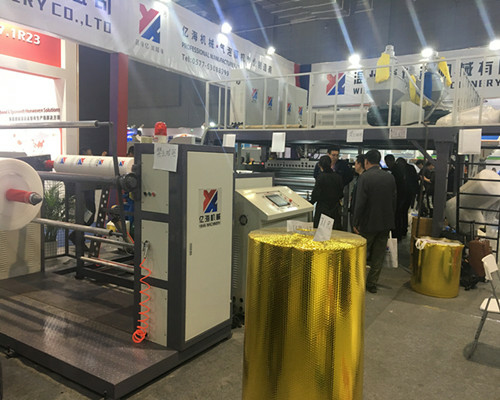

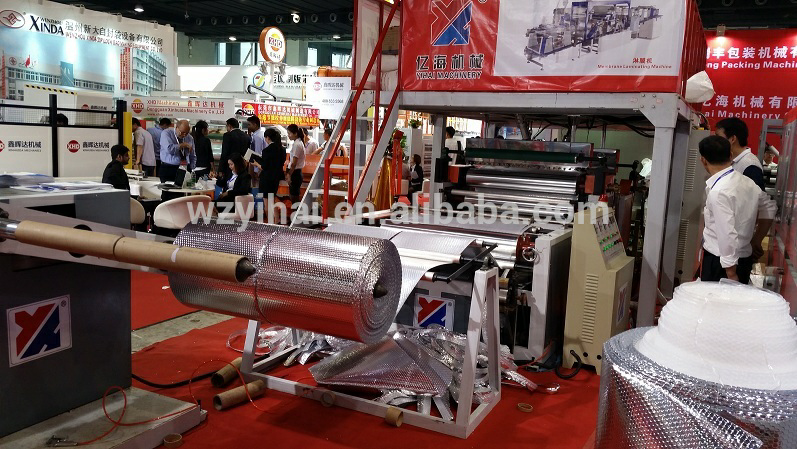

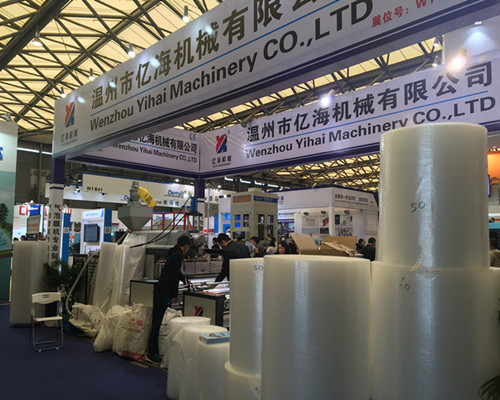

 2015 Chinaplas exhibition


2016 Chinaplas exhibition


2017 Chinaplas exhibition



We Stick to the operation idea of talents first, market oriented and development driven by innovation, to strengthen the cooperation and exchange with more domestic and foreign high-tech enterprises. Give great impetus to the process of modernization and internationalization.

Youtube Vedio Link:

https://youtu.be/wT9eVwukbYE

https://youtu.be/OpdN_4RfJow
